1 Objective

The goal of this session is to fit a Random Forest model on Loan data aiming to predict the probability of delinquency for each contract.

Random forest, in essence, consists of a large set of individual decision trees operating as an ensemble. Therefore, each individual tree in the random forest spits out a class prediction and the class with the most votes becomes our model’s prediction.

The fundamental concept behind random forest is a simple but powerful one — the wisdom of crowds. In data science speak, the reason that the random forest model works so well is: A large number of relatively uncorrelated models (trees) operating as a committee will outperform any of the individual constituent models.
— Tony Yiu

The Random Forest algorithm is a supervised algorithm that, even though it can be used for regression purposes, it was initially conceived as a classification tool.

The method follows the same concept as a decision tree but with the power of the crowd. So, basically, instead of using one big, deep and complex tree, the method relies on multiple randomly different (in multiple ways) trees voting for a class. This method usually perform better than one very well trained tree even if, individually, the trees are not as good classifiers, thus refering to the forementioned wisdom of the crowds.

Random forest thrives even in scenarios, when there is an abundance of chaos, i.e. many predictors. It’s hard to know which predictor is important and which is not. All the other traditional statistical techniques might fail or struggle when we have an incredibly high number of independent variables.
— Pranov Mishra

Because of the voting system inherent to the method it is often said to be democratic algorithm.

Now, if you think for a second, this is the way direct democracy works: each voter has access to a subset of the information and only sees that subset from a particular perspective (their own unique perspective). By using a majority vote, we are actually implementing a Random Forest.
— Pablo Duboue

2 Modeling

2.1 Dataset preparation

Using the vanilla transaction dataset, we calculated several derived variables for each account as described in the Data Preparation session.

This dataset is joined with Loan, Client, Credit Card, District, Account and Account Balance tables.

We ended up having a dataset with 118 variables.

variables
y_loan_defaulter
x_account_balance
x_average_salary
x_avg_account_balance
x_card_age_month
x_card_type_classic
x_card_type_gold
x_card_type_junior
x_client_age
x_client_gender_male
x_district_name_Benesov
x_district_name_Beroun
x_district_name_Blansko
x_district_name_Breclav
x_district_name_Brno_mesto
x_district_name_Brno_venkov
x_district_name_Bruntal
x_district_name_Ceska_Lipa
x_district_name_Ceske_Budejovice
x_district_name_Cesky_Krumlov
x_district_name_Cheb
x_district_name_Chomutov
x_district_name_Chrudim
x_district_name_Decin
x_district_name_Domazlice
x_district_name_Frydek_Mistek
x_district_name_Havlickuv_Brod
x_district_name_Hl.m._Praha
x_district_name_Hodonin
x_district_name_Hradec_Kralove
x_district_name_Jablonec_n._Nisou
x_district_name_Jesenik
x_district_name_Jicin
x_district_name_Jihlava
x_district_name_Jindrichuv_Hradec
x_district_name_Karlovy_Vary
x_district_name_Karvina
x_district_name_Kladno
x_district_name_Klatovy
x_district_name_Kolin
x_district_name_Kromeriz
x_district_name_Kutna_Hora
x_district_name_Liberec
x_district_name_Litomerice
x_district_name_Louny
x_district_name_Melnik
x_district_name_Mlada_Boleslav
x_district_name_Most
x_district_name_Nachod
x_district_name_Novy_Jicin
x_district_name_Nymburk
x_district_name_Olomouc
x_district_name_Opava
x_district_name_Ostrava_mesto
x_district_name_Pardubice
x_district_name_Pelhrimov
x_district_name_Pisek
x_district_name_Plzen_jih
x_district_name_Plzen_mesto
x_district_name_Plzen_sever
x_district_name_Prachatice
x_district_name_Praha_vychod
x_district_name_Praha_zapad
x_district_name_Prerov
x_district_name_Pribram
x_district_name_Prostejov
x_district_name_Rakovnik
x_district_name_Rokycany
x_district_name_Rychnov_nad_Kneznou
x_district_name_Semily
x_district_name_Strakonice
x_district_name_Sumperk
x_district_name_Svitavy
x_district_name_Tabor
x_district_name_Tachov
x_district_name_Teplice
x_district_name_Trebic
x_district_name_Trutnov
x_district_name_Uherske_Hradiste
x_district_name_Usti_nad_Labem
x_district_name_Usti_nad_Orlici
x_district_name_Vsetin
x_district_name_Vyskov
x_district_name_Zdar_nad_Sazavou
x_district_name_Zlin
x_district_name_Znojmo
x_last_transaction_age_days
x_loan_amount
x_loan_duration
x_loan_payments
x_no_of_cities
x_no_of_commited_crimes_1995
x_no_of_commited_crimes_1996
x_no_of_enterpreneurs_per_1000_inhabitants
x_no_of_inhabitants
x_no_of_municip_2000_to_9999
x_no_of_municip_500_to_1999
x_no_of_municip_greater_10000
x_no_of_municip_inhabitants_less_499
x_prop_household
x_prop_insurance_payment
x_prop_interest_credited
x_prop_loan_payment
x_prop_old_age_pension
x_prop_other
x_prop_statement
x_ratio_of_urban_inhabitants
x_region_central_Bohemia
x_region_east_Bohemia
x_region_north_Bohemia
x_region_north_Moravia
x_region_Prague
x_region_south_Bohemia
x_region_south_Moravia
x_transaction_amount
x_transaction_count
x_unemploymant_rate_1995
x_unemploymant_rate_1996

2.2 Variable selection

One advantage of Random Forest models is that it does not require heavy feature engineering.

We will only remove x_prop_old_age_pension that we know beforehand to have no variance in the dataset.

Mainly beacause of the ramdomness in variable selection of random forest algorithm, this model is not sensible to outliers, missing values and multicollinearity.

2.3 Sample split into Test and Training Data

The available data in Loan Dataset is split into Train and Testing data on the following proportion:

  • Train Dataset (70% 478 obs);
  • Test Dataset (30% 204 obs).

We are selecting exact the same samples for all models to allow comparison between then.

scope 0 1
full dataset 0.8885630 0.1114370
train dataset 0.8933054 0.1066946
test dataset 0.8774510 0.1225490

Both datasets kept the same proportion for the explained variable at about 11%.

3 Selecting the best parameters values for the Random Forest

The R community is a one of R’s best features. There are many community members doing awesome improvements on existent libraries as well as sharing and spreading knowledge to the four corners of the Earth (if you still think the Earth is flat and square as I do... #not).

The algorithm selected from randomForest package (Please, see References to reach out this amazing package) have two main parameters for random forest algorithm tuning: mtry representing the number of variables randomly sampled as candidates at each split (or the size of the trees) and ntree representing the number of trees to grow (or the size of the forest).

Another great package for modeling is caret (seriously, check this one out in References, it is fantastic in so many ways!) and, for the sake of our sanity, it has already implemented a good method for randomForest’s package parameter tuning (cheers to them!). This, with the expanded grid search (also from caret package), provides a high performance, friendly and intelligent way of testing parameters. Unfortunately, it is not a perfect world and the implemented method only tune mtry parameter.

In order to have both parameters tuned using expanded grid search we need to extend caret’s methodology, creating a custom method for parameter tuning and, for that, even under the risk of being repetitive, we must say: we can be saved by the grace of of R’s community!

There are a lot of implementations accross the internet, however, a good example (and apparently an original one) is provided by Jason Brownlee, who created this customized function supports mtry AND ntree parameter tuning together. Please, see References page for Jason’s credits (cheers to him!).

Below is his implementation to be further used in our RF training.

Moving further, we can now set up our expanded grid search using our customized RF train method to test multiple parameters and its different combinations. After that, caret’s method will automatically select best model according to the metric we defined (in our case, accuracy). Moreover, to provide a reliable method of training to avoid (as well as we can) overfitting, we used repeated k-fold cross validation as train control - also provided by caret’s package (we warned you, this is, indeed, an amazing package!).

After some cups of coffee (and maybe some time spent on your preferred streaming provider), we have the training finished. And the winners are…:

Last but not least, we saved the final model results on disk to be quickly consumed when necessary.

So, to save time, we only have to load the fitted model saved on disk.

4 Interpreting model output

For this model the four principal vars are:

The result is similar to the Logistic Regression, Decision Tree and Boosting models.

5 Evaluating the model performance

Here we will perform basically the same steps we did in the Logistic Regression, Decision Tree and Boosting models.

A comparison against all the models will be provided in the Final Report session of this exercise.

We started this step by making predictions using our model on the X’s variables in our Train and Test datasets.

5.1 Getting Performance Measures

To calculate the performance measures, derived from the confusion matrix, we need to find the score cut off that best split our test dataset into Defaulters and Non-Defaulters.

In this exercise we decide to not prioritize the accuracy on predicting Defaulters and Non-Defaulters, therefore we are looking for the score cut off that best predict each class equally.

With the returned object from this function we can plot the comparison between TPR (True Positive Rate) and TNR (True Negative Rate) to find the best cut off.

With the optimized cut off we calculate the full set of model metrics using the function HMeasure from hmeasure library (another very good package! Don’t forget to check for our references).

Below are the metrics on the train and test dataset:

metric random forest - train random forest - test
H 1.0000000 0.4248541
Gini 1.0000000 0.6808939
AUC 1.0000000 0.8404469
AUCH 1.0000000 0.8654749
KS 1.0000000 0.6239106
MER 0.0000000 0.0980392
MWL 0.0000000 0.0808824
Spec.Sens95 1.0000000 0.5139665
Sens.Spec95 1.0000000 0.3200000
ER 0.0460251 0.2303922
Sens 1.0000000 0.7600000
Spec 0.9484778 0.7709497
Precision 0.6986301 0.3166667
Recall 1.0000000 0.7600000
TPR 1.0000000 0.7600000
FPR 0.0515222 0.2290503
F 0.8225806 0.4470588
Youden 0.9484778 0.5309497
TP 51.0000000 19.0000000
FP 22.0000000 41.0000000
TN 405.0000000 138.0000000
FN 0.0000000 6.0000000

Our Random Forest model clearly overfitted (as we can see by most of metrics, AUC of 1.0 in train set and 0.84 in test set, for example). This happened mainly because of the size of our dataset.

5.2 Evaluating classification performance

This model delivered an amazing result but not the best one (beaten by the boosting model). We have a full session to compare how it performed against other models in the Final Report session. But wait, you should’t hurry, there are still some steps to evaluate RF algorithm.

Below the confusion matrix and general performance of the model:

##
##
##             pred.1   pred.0
## ---------  -------  -------
## actual.1        19        6
## actual.0        41      138
## [1] "--------------------------------------------------------------"
## [1] "Model General Accuracy of: 76.96%"
## [1] "True Positive Rate of    : 76%"

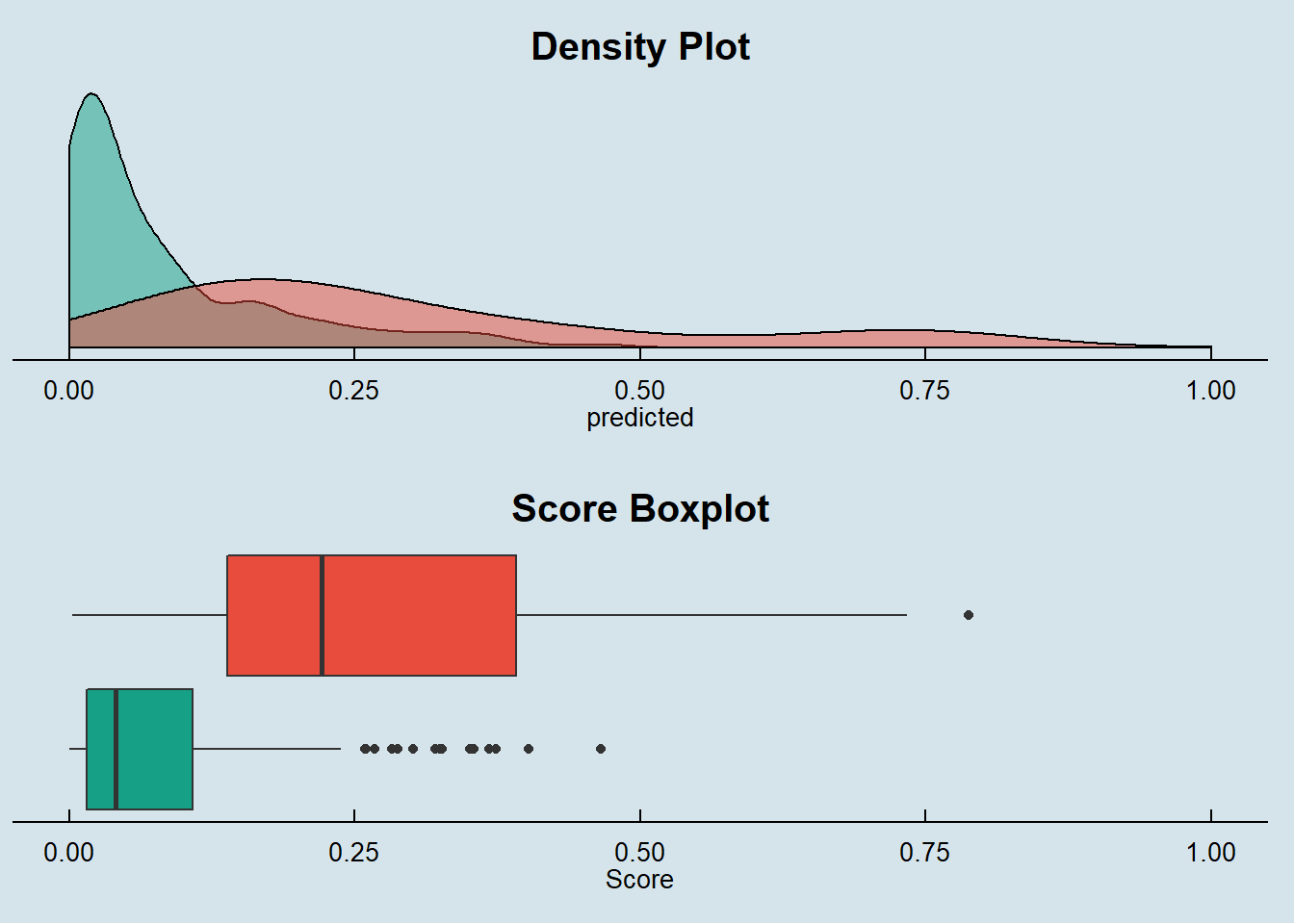

We finally look at the score distribution charts to check how well the model is able to discriminate Defaulters and Non-Defaulters.

By the score density we see that our Random Forest model provides a narrow and precise discrimination around defaulters.

The box plot also shows a clear discrimination between Defaulters and Non-Defaulters.

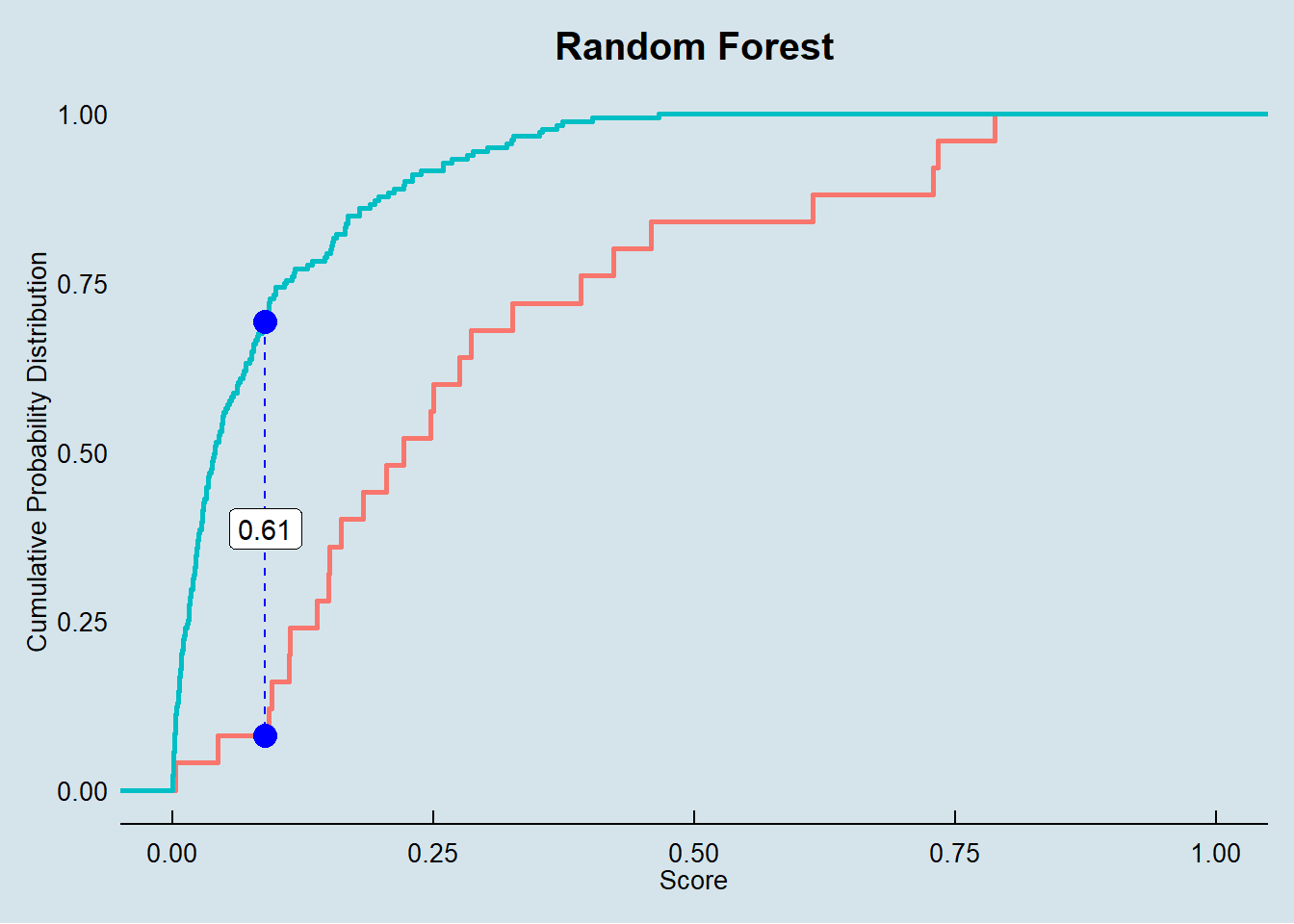

Finally, the KS metric is also presented a good result for a reliable classification purpose.

In the Final Report session, we will look more closely on the AUC and Gini metrics by plotting the ROC curve and comparing against other models.

More to come in the final report!!!
